光學桌板
Compact, air-free active vibration isolation system with plug-and-play installation for tabletop precision instruments.

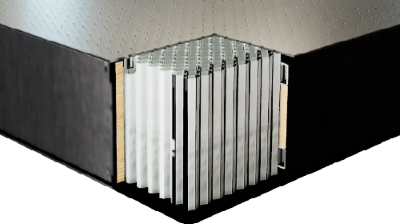

Honeycomb core structure
Product Specifications
| Magnetic | Non-magnetic | |
|---|---|---|
| Available Dimensions | ||
| Width Range | 500 – 1500 mm | |
| Depth Range | 400 – 1200 mm | |
| Thickness Options | 25 / 50 / 100 mm | |
| Table Construction | ||
| Core Construction |
Steel honeycomb core structure, 0.25 mm thick foil |
304 non-magnetic stainless steel honeycomb core, 0.25 mm thick foil |
| Honeycomb Cell Size | 2.9 cm² | |
| Top Skin Material |
4.0 mm thick 430 series ferromagnetic stainless steel |
4.0 mm thick 430 series non-magnetic stainless steel |
| Bottom Skin Material | 4.5 mm thick steel | 4.5 mm thick
304 non-magnetic stainless steel |
| Side Panel Construction |
2.0 mm thick steel plate with highly damped composite wood |
2.0 mm thick 304 non-magnetic stainless steel plate with highly damped composite wood |
| Surface & Mechanical Properties | ||
| Core Shear Modulus | 19339 kgf/cm² (275,000 psi) | |
| Surface Flatness | ±0.03 mm | |
| Damping Method |
Broadband damping from honeycomb sandwich construction, bonded interfaces, and damped side walls |
|
| Mounting Configuration | ||
| Thread Specification | M6 × 1.0 (1/4-20) | |
| Hole Grid Pitch | 25 mm pitch (1.0 in square grid) | |
| Edge Distance | 37.5 mm (1.5 in) | |
| Hole Sealing | 21 mm deep cylindrical sealing cap on each hole | |
| Dynamic Performance | ||
| Resonant Frequency | 210 Hz | |
| Compliance (Static) | 206n m/N | |
