主動式隔振系統
High-performance active isolation platform designed specifically for electron microscopy and ultra-high-resolution imaging applications.

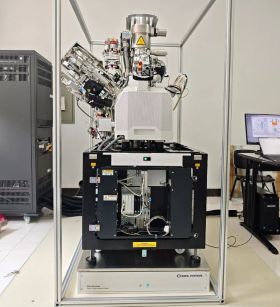

Case Studies
Product Specifications
| Model | DVIA-ML1000 | DVIA-ML3000 | DVIA-ML6000 |
|---|---|---|---|
| Payload Capacity Options | Customizable | ||
| Maximum Load Capacity | 1700kg | 3000kg | 6000kg |
| Vibration Isolation Technology | Feedback and Feedforward Control | ||
| Degrees of Freedom | 6 (X, Y, Z, θx, θy, θz) | ||
| Active Isolation Bandwidth | 0.5 – 200 Hz | ||
| Vibration Isolation | 80 – 90% at 1 Hz | ||
| Actuator | Electromagnetic Actuator | ||
| Maximum Actuator Force | Vertical 40 N, Horizontal 20 N | Vertical 40 N, Horizontal 20 N | Vertical 80 N, Horizontal 40 N |
| Vibration Sensor | Geophone, Sensitivity: 2.55 V/in/s (100.4 V/m/s) ± 10% | ||
| Leveling Repeatability | Repeatability: ± 0.1 mm | ||
| Response Time | < 0.5 ms | ||
| Controller | Built-in | ||
| Environmental Protection | CE and TUV | ||
| Power Requirements | Line Voltage: 100 – 260V AC,
Line Frequency: 50/60 Hz |
Line Voltage: 100 – 260V AC,
Line Frequency: 50/60 Hz |
Line Voltage: 100 – 240V AC
(Single-phase), Power: 100 W |
| Air Requirements | Air Pressure: 4 – 6 bar,
Air Delivery: 10 L/min |
Air Pressure: 4 – 6 bar,
Air Delivery: 10 L/min |
Air Pressure: 5 – 6 bar,
Air Delivery: 250 L/min |
| Environmental Requirements | Temperature: 5 – 50 °C, Humidity: 20 – 90 % | ||
