可調諧單頻連續雷射

Widely tunable single frequency CW lasers

C-WAVE Series

C-WAVE tunable lasers are widely tunable continuous wave (cw) laser light sources covering an unprecedented range of wavelengths in the visible and near IR range.

Wavelength coverage from 450 nm up to 3.5 µm
Up to 250 nm gap-free tuning range in the visible
Single frequency operation with < 500 kHz typical linewidth
Output powers up to Watt-level

C-WAVE tunable lasers offer several tuning mechanisms, ranging from a fully automated wavelength approach to truly continuous mode-hope free scans over tens of GHz. In closed-loop operation, a long term frequency stability as good as +/- 2 MHz over hours can be achieved. They operate fully automated without the requirement of consumables.

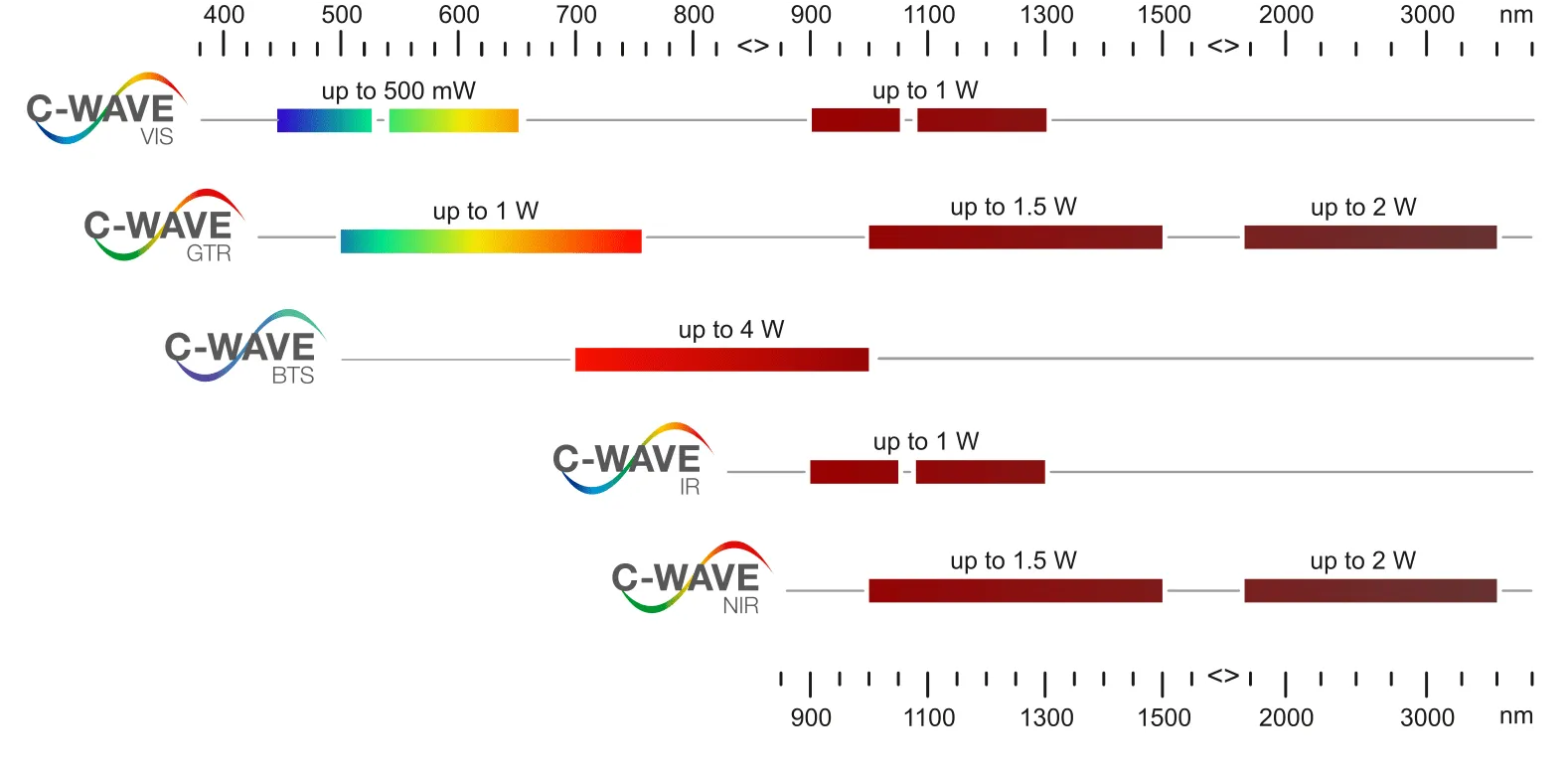

Model Overview

The C-WAVE product line makes use of optical parametric oscillators and Ti:Sapphire lasers to cover the visible and NIR wavelength range. Different pump laser power and wavelength option tailor C-WAVE to your application in Holography, High resolution spectroscopy or Resonant Raman spectroscopy.

Data Sheet

Model	Tuning Range	Output Power
C-WAVE VIS Low Power	450 – 525 nm and 540 – 650 nm and 900 – 1050 nm and 1080 – 1300 nm	up to 200 mW up to 200 mW up to 400 mW up to 400 mW
C-WAVE VIS High Power	450 – 525 nm and 540 – 650 nm and 900 – 1050 nm and 1080 – 1300 nm	up to 500 mW up to 500 mW up to 1 W up to 1 W
C-WAVE GTR	500 – 750 nm and 1000 – 1500 nm and 1700 – 3500 nm	up to 1 W up to 1.5 W up to 2 W
C-WAVE BTS	700 – 1000 nm	>750 mW, up to 5W @ peak wavelength
C-WAVE IR Low Power	900 – 1050 nm and 1080 – 1300 nm	up to 400 mW up to 400 mW
C-WAVE IR High Power	900 – 1050 nm and 1080 – 1300 nm	up to 1 W up to 1 W
C-WAVE NIR	1000 – 1500 nm and 1700 – 3500 nm	up to 1.5 W up to 2 W

Model

Tuning Range

Output Power

C-WAVE VIS Low Power

450 – 525 nm and
540 – 650 nm and
900 – 1050 nm and
1080 – 1300 nm

up to 200 mW
up to 200 mW
up to 400 mW
up to 400 mW

C-WAVE VIS High Power

450 – 525 nm and
540 – 650 nm and
900 – 1050 nm and
1080 – 1300 nm

up to 500 mW
up to 500 mW
up to 1 W
up to 1 W

C-WAVE GTR

500 – 750 nm and
1000 – 1500 nm and
1700 – 3500 nm

up to 1 W
up to 1.5 W
up to 2 W

C-WAVE BTS

700 – 1000 nm

>750 mW, up to 5W @ peak wavelength

C-WAVE IR Low Power

900 – 1050 nm and
1080 – 1300 nm

up to 400 mW
up to 400 mW

C-WAVE IR High Power

900 – 1050 nm and
1080 – 1300 nm

up to 1 W
up to 1 W

C-WAVE NIR

1000 – 1500 nm and
1700 – 3500 nm

up to 1.5 W
up to 2 W
